Brand Name : | Ritian communication |
Model Number : | M12 conn-015 |
Certification : | UL CE ROHS |
Price : | Negotiable |
Supply Ability : | 10000 Unit/Units per Month |
Delivery Time : | 5-7 days |

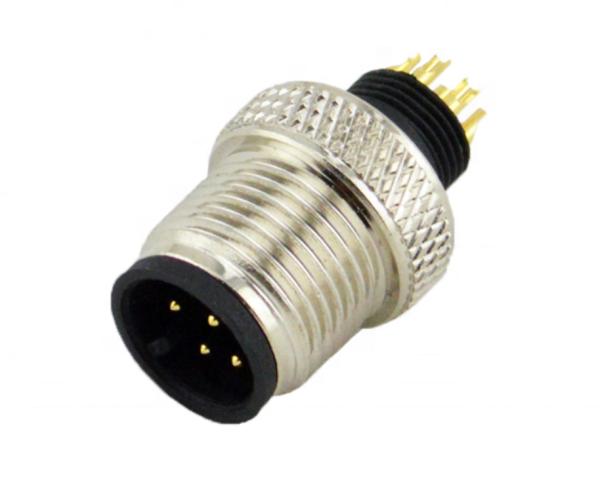

IP67IP68 waterproof molding connector male female 3 4 5 8 pin M12 plug socket
• M12 Circular connector according to IEC 61076-2-101
• M12 circular connector with M12*1.0 screw locking equivalent to
Binder, Phoenix, Lumburger automation...
• Waterproof rating is IP67, protected from dust and water during
immersion, resistant to many oils and chemical
Available Description:
Shielded is available
Hexagon screw is available
Stainless steel screw is available
Anti-vibration locking screw design
IP67/IP68, RoHS, REACH, UL certificate
Generally Description:
Connector Series: M12
Standard: IEC 61076-2-101
Coding: A
Pins: 3pins, 4pins, 5pins, 8pins,12pins are available
Gender: Male / Female
Connector Design: Cable plug
Connector Locking System: Fix screw
Waterproof Rating: IP67/IP68
Ambient Temperature: -25℃~+85℃
Material:
Connector Body: PA66+GF
Contacts: Brass / Phosphorus copper with gold plated
Screw/Nut: Brass with nickel plated
Waterproof 0-ring: FKM
Electrical data:
Rated Current: 4A / 2A / 1.5A
Rated Voltage: 250V / 60V / 30V
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥100MΩ
• All materials conform to RoHS, REACH without any harmful
substance comprising strickly checked QC
• 100% testing for open circuit and short circuit and 100% smooth
operation before shipping
• Insulation resistance: 10M OHM
• Hi-pot: DC 300V 10ms
![]() |
