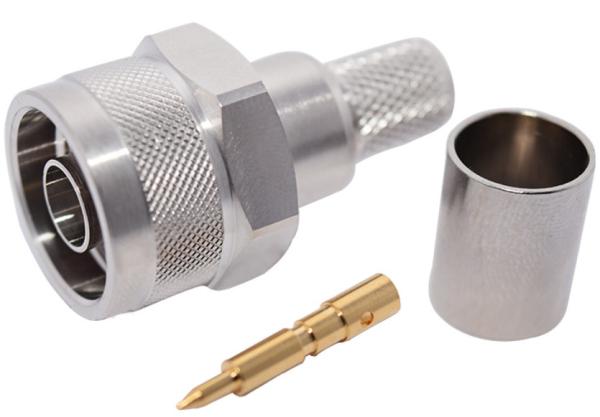

    N Type Straight Crimp Male 50 Ohm LMR-400 RF Connector

    Ask Lasest Price
    Brand Name : Sun Communication
    Model Number : N-Type Straight Crimp Male for LMR-400
    Certification : UL CE ROHS
    Price : Negotiable
    Supply Ability : 10000 Unit/Units per Month
    Delivery Time : 1-2weeks
    • Product Details
    • Company Profile

    N Type Straight Crimp Male 50 Ohm LMR-400 RF Connector

    N Type Straight Crimp Male 50 Ohm LMR-400 RF Connector


    Feature:


    > Super soft feeder telecom level

    > Cable with strong flexibility , resistance to bending ,length can be customized.

    > High purity oxygen free copper reinforcement signal anti-jamming and enhance the signal transmission,

    increasing signal transmission distance, long service life

    > Pure copper joint signals far superior alloy joints, low dissipation and more resistant to corrosion
    > A new polyvinyl chloride(PVC), soft pull resistance, not easily broken


    MATERIALS AND PLATING
    DESCRIPTIONMATERIALSPLATING
    BODYBRASS C3604PL.NICKEL 100u" MIN/COPPER
    CONTACT PINBRASS C3604PL.GOLD 3u"MIN/COPPER/NICKEL
    INSULATORPTFE ASTM-D-1710N/A
    CRIMP FERRULEBRASS C3602PL.NICKEL 100u" MIN/COPPER
    ELECTRICAL SPECIFICATION
    Impedance50 Ohm
    Frequency rangeDC~6GHz
    Voltage rating750 V(rms)
    Dielectric withstanding voltage>2500 V
    Center contact resistance<1.0 mΩ
    Outer contact resistance<0.2 mΩ
    Insulation resistance>5000 MΩ
    Insertion loss0.15dB at 10 GHz
    RF leakage-90 dB min @ 3 GHz
    VSWR<1.15

    N Type Straight Crimp Male 50 Ohm LMR-400 RF ConnectorN Type Straight Crimp Male 50 Ohm LMR-400 RF ConnectorN Type Straight Crimp Male 50 Ohm LMR-400 RF ConnectorN Type Straight Crimp Male 50 Ohm LMR-400 RF Connector
