    AISG RRU To RCU Cable Assembly Connector RET Control To DB9 5m

    Ask Lasest Price
    Brand Name : RITIAN
    Model Number : M16 Aviation plug connector
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    AISG RRU To RCU Cable Assembly Connector RET Control To DB9 5m

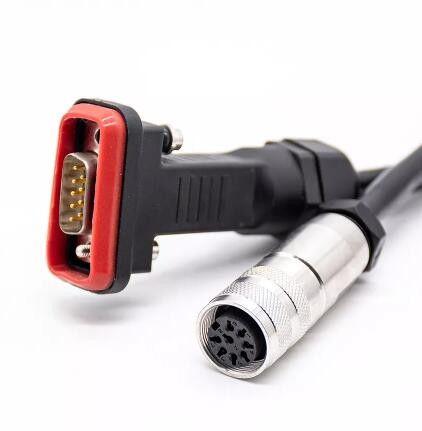

    AISG connector RRU to RCU RET AISG Control Cable to DB9 connector 5m assembly cable connector


    Product Fetures

    1.Extremely strong resistant to acid,alkali,chemical cleaning agent /reagent properties;

    2.Resistant to welding spark,continually twist ;

    3.Resistant to oil,coolant ,lubricant and emulsion;

    4.Pin configurations:2,3,4,5,7,8,12,14,19,24 properties ;

    5.Shield and un-shield Version Available with metal or plastic housing;

    6.Meet IP67/IP68 waterproof requirements;

    7.Temperature Range:-25℃ ~ +85℃;


    Aisg Cable assembly
    With a rugged metal housing and environmental protection rating of IP67 when mated, this robust DIN connector range is an ideal solution for ensuring that power and signal connections are not compromised in harsh environments and industrial applications.

    High quality AISG equivalent as Binder eries 423, 723 and 425 family of connectors are rugged, high-performance circular connectors with excellent EMI shielding and IP67. Ideal choice for severe industrial and commercial applications. Panel-mounted receptacle are available in many styles and mounting methods.
    Rugged metal shells
    Straight or right-angle cable connector
    Right-angle cable connectors adjustable in 4 radial positions
    Excellent 360° EMI shielding and IP67
    Internal strain relief
    2 to 24 contacts,gold(Au)- or silver(Ag)-plated


    Electrical Specifications
    Protocol
    AISG 1.1 | AISG 2.0
    Voltage, maximum
    300V
    Product Type
    AISG standard cable
    AISG Connector A
    8-pin DIN Female
    AISG Connector Body Style
    Straight
    AISG Connector Standard
    IEC 60130-9
    AISG Connector B
    8-pin DIN male
    AISG Poles
    4PIN 5PIN 6PIN 8PIN are available
    Relative Humidity
    Up to 100%
    Cable length
    0.5m-100m
    Cable Performance
    IP67,UV-Resistance/Low Temperature resistance/Outdoor application

    Technology parameter
    NO.of contacts23455A6781214161924
    Rated Current/Voltage7A-200V7A-200V7A-200V6A-200V5A-60V5A-200V5A-60V5A-60V5A-60V5A-60V5A-60V5A-60V5A-60V
    Operation Limit Voltage(AC.V.rms)250250250250125250125125125125125125125
    Withstanding Voltage(AC.V.rms) l Minute15001500150050015001500800500500500500500500

    Insulation Resistance

    (MΩ MIN.) at DC 500V

    1500150015001500100015001000100010001000100010001000

    Contact Resistance

    (MΩ MAX.) AT DC 1A

    777777771010101012
    Solder Cup Mouth Aperture111111110.80.80.80.80.6
    Solder Inter Diameter1.51.51.51.51.51.51.51.511110.5



    AISG RRU To RCU Cable Assembly Connector RET Control To DB9 5mAISG RRU To RCU Cable Assembly Connector RET Control To DB9 5mAISG RRU To RCU Cable Assembly Connector RET Control To DB9 5mAISG RRU To RCU Cable Assembly Connector RET Control To DB9 5m
